TH302 data logger is a low-power, multi-functional data collector, which is independently developed by our company. It integrates solar charge controller, polymer lithium battery, GPRS, GPS and other components. It is compatible with sensors with analog, switch, frequency, SDI-12, RS485 and many other signal outputs, and also can read the data of MODBUS RTU module. It can supply power to the sensor on demand, and has Bluetooth and the function of remote wireless transmission.

  TH302 supports 32 measurement variables, which can directly measure the real-time value, maximum value, minimum value, average value, period cumulative value and permanent cumulative value of each variable. The measurement interface includes 5 analog channels, 1 switch channel, 1 frequency channel, 1 SHT series temperature and humidity sensor digital measurement channel, 6 SDI-12 channels and 1 RS485 channel, and can be expanded when using MODBUS module if needed.

  TH302 has Bluetooth and GSM / GPRS transmission functions, and parameter setting and data acquisition via Bluetooth / TCP / SMS. The data logger has built-in solar charge controller and 20Ah polymer lithium battery, which effectively reduces the system’s operating cost.

  TH302 can be connected to a variety of sensors for measuring meteorological parameters, soil moisture and other index, and is widely used in agriculture, forestry, meteorology and other fields.

 Main features:

 12-bit resolution, range is 5000mV, basic resolution is 1.47mV, accuracy is ± 0.08% of reading.
  6 independent SDI-12 interfaces.
  1 RS485 interface, support MODBUS Master mode and MODBUS Slave mode.
  1 channel dedicated for camera, which can be connected to the camera with RS485 output.
  Automatically monitor battery, solar panel, real-time clock battery voltage.
  Support 32 variables, each variable can be configured with polynomial conversion formula.

  Automatic calculation of real-time value, average value, maximum value, minimum value, cumulative value.
  The minimum measurement period is 1 minute, and two measurement tasks can be set to measure different variables in different periods.
  The minimum storage interval is 1 minute, 2 storage tables can be set, each storage table can define whether to send remotely via GPRS.
  Parameter configuration and history download via Bluetooth.
  GPRS communication function, remote real-time data viewing and history download via TCP protocol.
  GPS positioning function, each historical record has 3D coordinates.
  32M FLASH storage, standard 8G Micro SD card, maximum support 32G SD card.
  Built-in 20AH / 3.7V polymer lithium battery.

  Sampling and storage interval: 1 minute minimum

  Storage: 32M flash memory, standard 8G memory card

  Digital channels: 6 independent SDI12, 1 RS485, 1 RS485 dedicated for camera

  Analog channel: 5 single-ended

  SHT channel: 1 channel for SHT15 / 35

  Pulse channel: 2 channels

  Measurement: automatically monitor the battery, solar panel, real-time clock battery voltage, and real-time value, average, maximum, minimum, cumulative

  Transmission: data can be transmitted by mobile phone Bluetooth or remote wireless

  GPS: built-in

  Data management platform: free of charge

  Power supply: built-in 20Ah lithium battery, can be connected to solar panel or battery

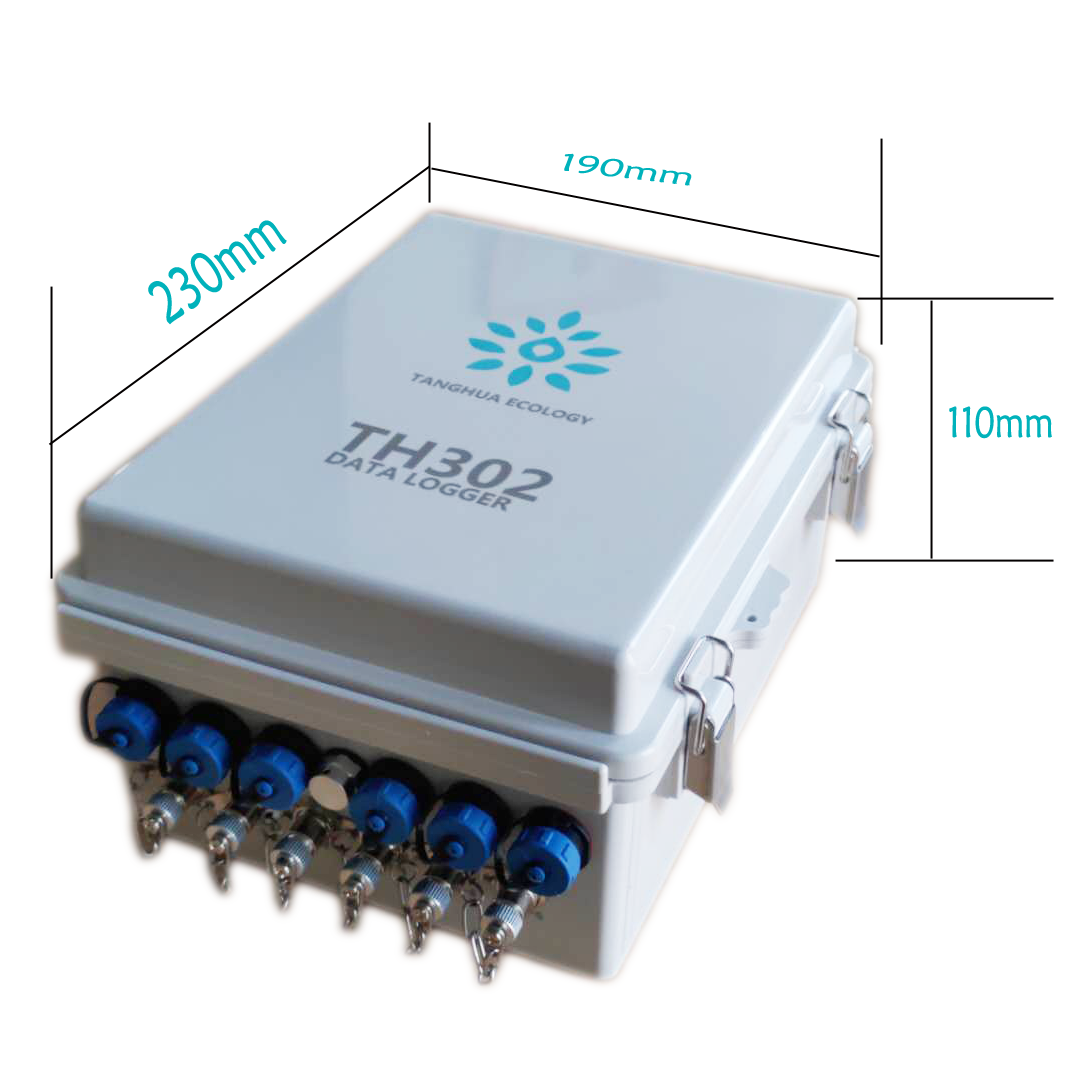

  Size: 230 × 190 × 110 (mm)
