The TH301 soil water content monitoring system is mainly composed of a data logger and TH series of soil moisture sensors. The measurement data of multiple monitoring samples can be viewed and downloaded online in real time on a freely provided data management platform.
Data logger:

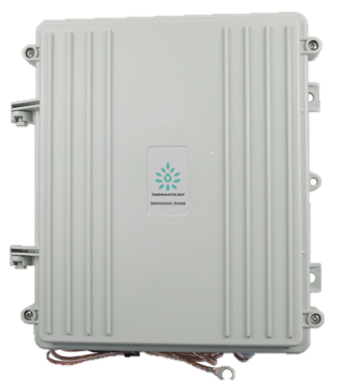

The
data logger is low-cost, low-power, multi-functional, which integrates solar
charge controller, polymer lithium battery, GPRS, GPS and true color touch
screen. The data can be downloaded from a mobile phone via bluetooth or
remotely wirelessly transmitted, and has an Android APP data viewing and
management tool. The edge of the case is sealed with an O-ring, which has good
water resistance and is convenient for monitoring in the field. Moreover, it
can connect various types of sensors and supports SDI-12 and RS-485 interfaces.
TH
series of soil moisture sensors:
TH series of soil moisture sensors have three types. TH-10 is to measure soil volumetric water content. TH-20 is to measure soil volumetric water content and temperature. TH-30 is to measure soil volumetric water content, temperature, and electrical conductivity.

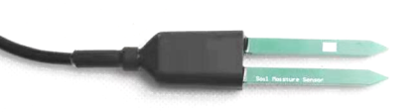

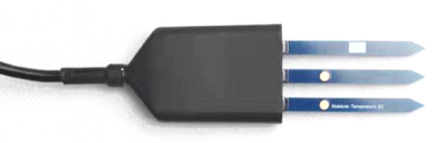

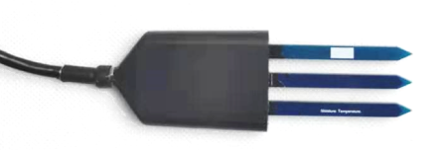

TH-10 TH-20 TH-30
TH series of soil moisture sensors can directly measure the volumetric moisture content of soil by measuring the dielectric constant of the soil, which is a method of measuring soil moisture in accordance with current international standards. It is suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, precision agriculture and other occasions.
The sensor has the following characteristics:
The electrode adopts specially processed synthetic material, which can withstand strong external impact and is not easy to damage.
Excellent sealing, better than similar imported products, can be buried in the soil or directly into the water for long-term dynamic monitoring.
High precision, fast response, good interchangeability, probe insertion design ensures accurate measurement and reliable performance.
Perfect protection circuit and multiple signal output interfaces are optional.
IP68 waterproof interface.
Data logger
Sampling interval: 1 minute minimum
Storage: 32M memory, with 8G SD card, supporting 32 variables
Digital channel: SDI12 / RS485 / RS232
Analog channel: 12 single-ended
Measurement: Automatically monitor the battery, solar panel, real-time clock battery voltage, automatically calculate the real-time value, average, maximum, minimum, cumulative
Transmission: data can be transmitted by mobile phone bluetooth or remote wireless
GPS: built-in
Power supply: Built-in 20Ah lithium battery, can be connected to solar panel or battery
Size: 250 × 253 × 100 (mm)
Soil sensor
Types
TH-10
TH-20
TH-30
Measurement
VWC
VWC
Temperature
VWC
Temperature
Electrical conductivity
Range
0~100%
0~100%
-40~80℃
0-100%
-40~80℃
0~23 ds/m
Resolution
0.1%~0.25%
0.08%
0.1℃
0.08%
0.1℃
0.01dS/m(<7dS/m), 0.05dS/m(7-23dS/m)
Precision
±1~3%
±1~3%
±0.5℃
±1~3%
±0.5℃
±5%(0-7ds/m)
Output
Voltage
SDI-12
SDI-12
Supply voltage
2.5-3.6 VDC
3.6-12 VDC
3.6-12 VDC
Response time
10ms
150ms
150ms
Enclosure size
20*12*93mm
35*12*110mm
35*12*110mm
Enclosre rating
IP68
Operating
environment
-40~85℃
Probe material
Anti-corrosion special electrode
Sealing material
Black flame retardant epoxy resin
Cable length
5 meters by default, other lengths
can be customized
